Biofilm Reactor Fish Pond MBBR Filter Media 100% Virgin HDPE Material

Name: Biofilm Reactor Fish Pond MBBR Filter Media 100 Virgin HDPE Material
Brand: HUISEN
Price: 280 USD

China Biofilm Reactor Fish Pond MBBR Filter Media 100% Virgin HDPE Material wholesale

Brand Name : HUISEN

Model Number : pe03

Place of Origin : China

MOQ : 1 CBM

Price : $280-320/CBM

Payment Terms : T/T, Western Union

Supply Ability : 15CBM/DAY

Delivery Time : 7-15 days

Packaging Details : woven bag,0.1cbm/bag

Size : 10*7mm

Color : White

Service Life : >15 years

Membrane-forming Time : 3-15 days

Product Name : Biofilm Reactor Fish Pond MBBR Filter Media 100% Virgin HDPE Material

Type : Pe03

Material : 100% Virgin HDPE

Usage : water treatment

Contact Now

HUISEN moving bed bio reactors media mbbr K3 mbbr

Product Description

The filler is made of high-molecular material HDPE, which has strong impact resistance; geometrical design according to fluid mechanics and enhanced surface adhesion; specially designed geometric configuration, with huge effective specific surface area; advanced surface treatment technology is more conducive to The attachment and growth of microorganisms provides a strong guarantee for water filtration and circulation.

Technology Parameter

Model	Unit	PE02	PE03	PE04	PE05	PE06	PE08	PE10
Spec.	mm	11*7	10*7	16*10	25*12	25*10	5*10	25*4
Hole numbers	pcs	4	5	6	19	19	8	64
Density	g/cm³	0.9-0.98	0.96-0.98			1.02-1.05		0.96-0.98
Packing numbers	pcs/m³	>830000	>850000	>260000	>970000		>2000000	>210000
Efficient surface	m²/m³	>900	>1000	>800	>500		>3500	>1200
Void ratio	%	>85			>90		>80	>85
Dosing ratio	%	15-68					15-70	15-65
Membrane-forming time	days	3-15
Nitrification efficiency	gNH4-N/m³.d	400-1200					500-1400	500-1400
BOD5 oxidation efficiency	gBOD5/m³.d	2000-10000					2500-15000	2500-20000
COD oxidation efficiency	gCOD/m³.d	2000-15000					2500-20000	2500-25000
Applicable temperature	℃	5-60
Life-span	year	>15

Advantages

No need for brackets, easy to fluidize, save energy. The proper specific gravity makes the packing in the state of suspension flow, which minimizes the energy consumption; increases the impact and cutting of the bubbles, and under the same conditions, the aeration can be reduced by more than 10%.Extremely simple maintenance and care .General filter materials require regular cleaning and refurbishment maintenance, while new
bio-fillers generally do not require cleaning and refurbishment after being recycled, and can be used repeatedly for more than 10
years.

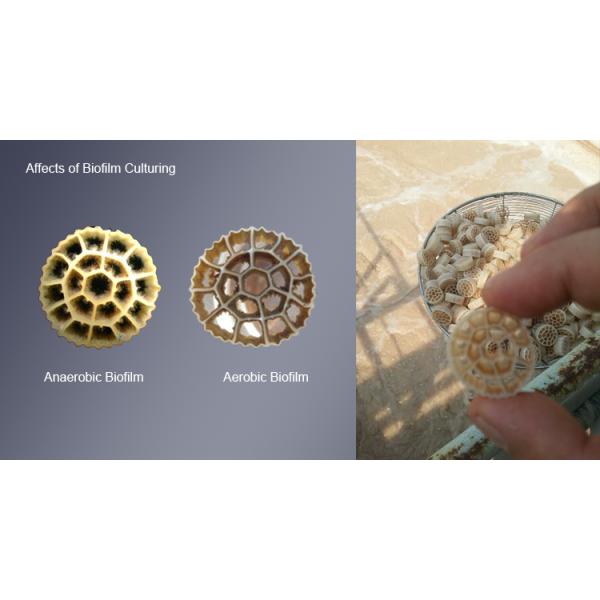

Biofilm Reactor Fish Pond MBBR Filter Media 100% Virgin HDPE Material Images
